SPECIFICATIONS

Body Material: aluminum

Brand Name: Sofirn

Certification: CCC,ce,FCC,ROHS

Charger: Rechargeable

Flashlight Type: outdoor/emergency lighting

Focal Length: Non-adjustable

Function: Shock Resistant,Self Defense

High-concerned chemical: None

Is Batteries Included: Yes

Item Type: FLASHLIGHTS

Light Source: LED bulbs

Lighting Distance: 100-200 m

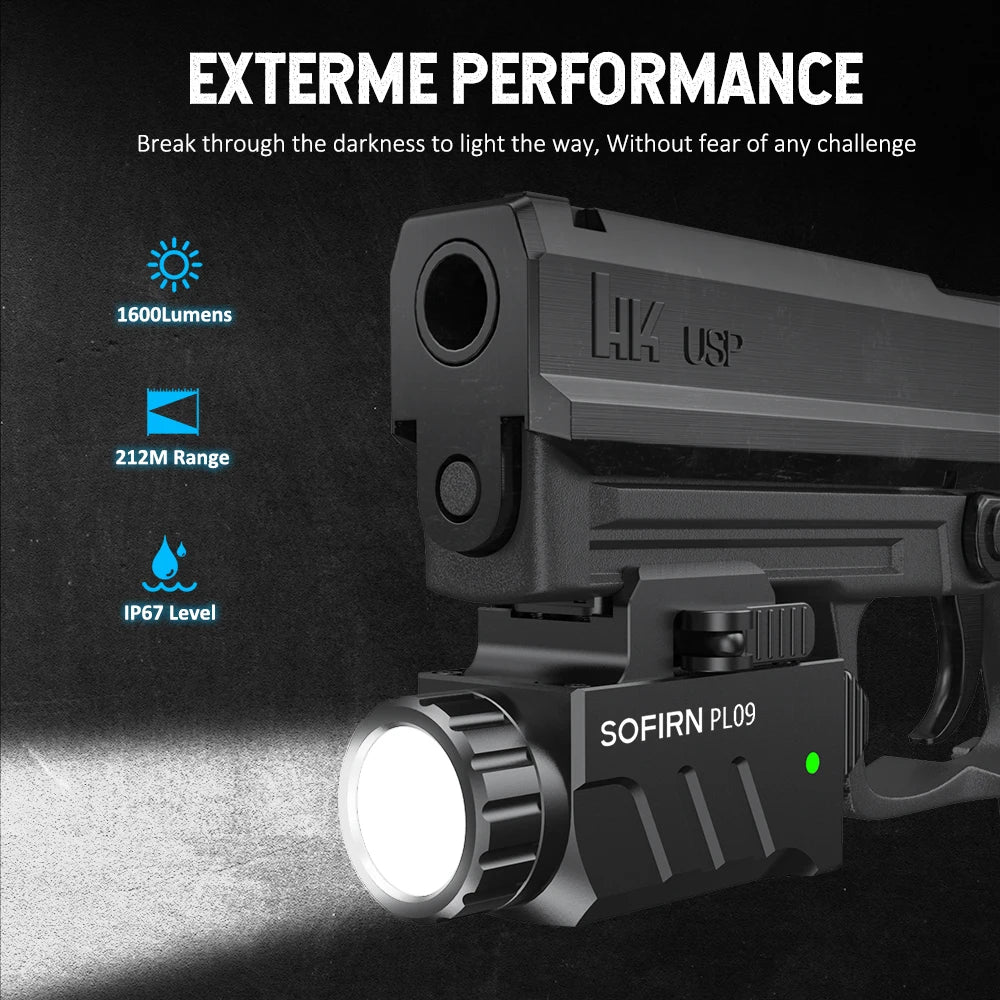

Lumen: 1600

Model Number: SOFIRN PL09

Model of LED Beads: SST40

Support Dimmer: 2 - 4 Files

Switch Mode: High/Middle/Low

Waterproof: Yes

Wattage: 16W

Zoom: No

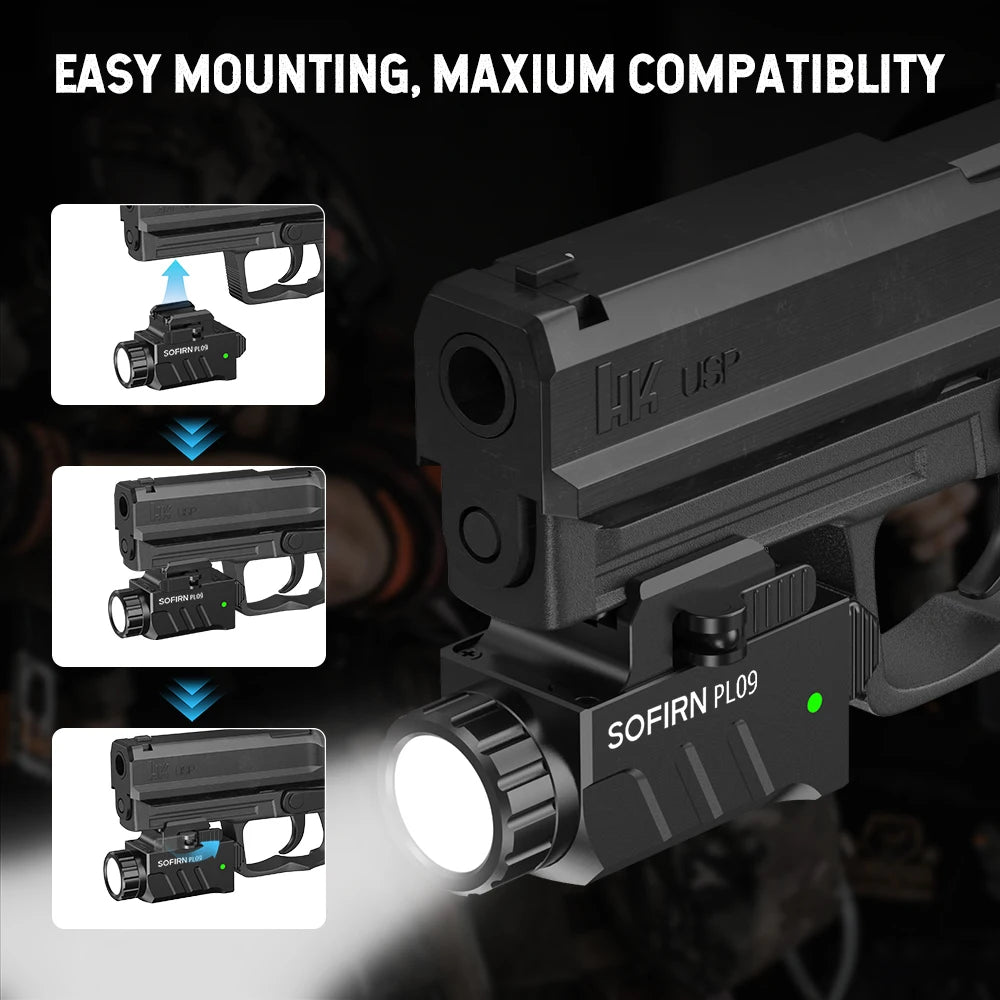

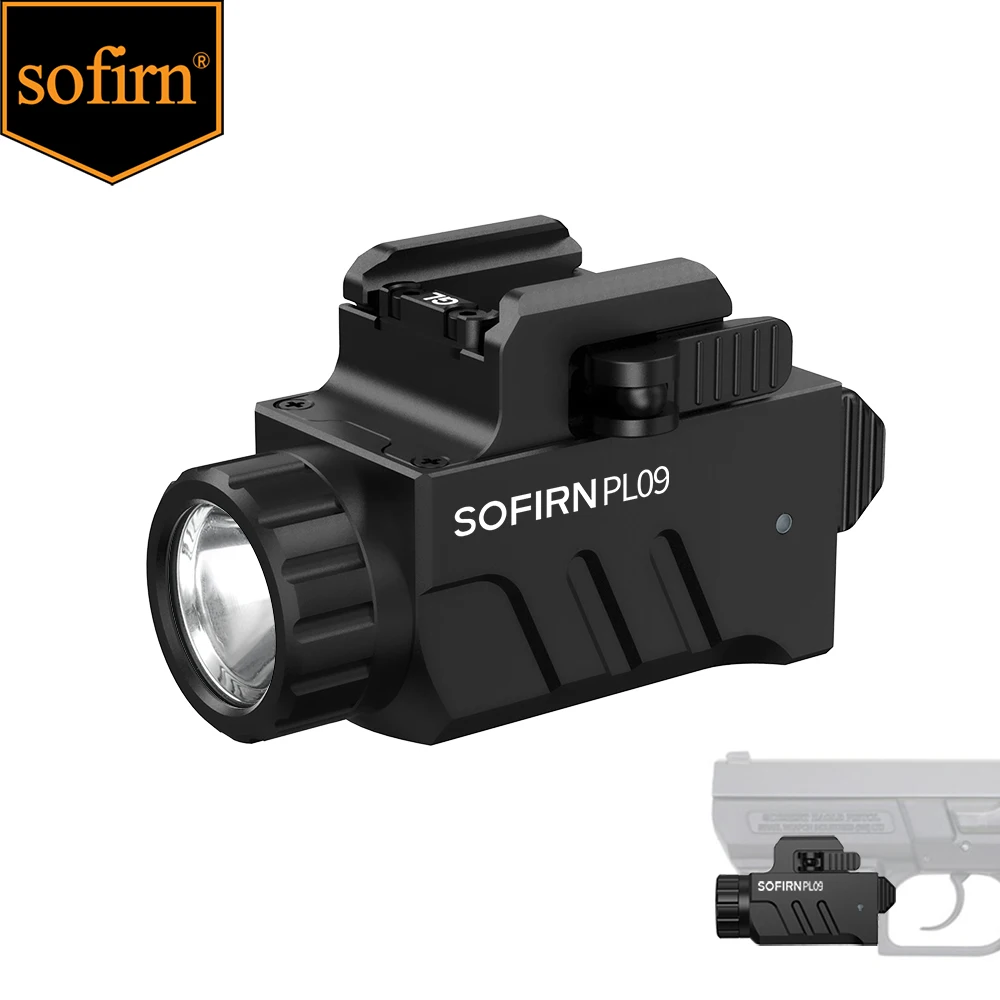

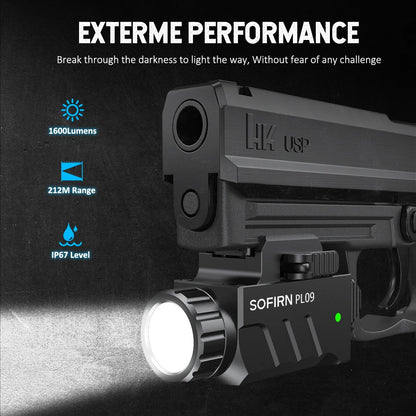

The PL09 is a high-performance tactical light that is not only bright but also equipped with many other great features. Designed with dual buttons, it allows you to quickly start the light with easy press. The rail mount on the PL09 weaponlight is compatible with most Picatinny rails on the market, allowing various rail configurations. Moreover, its adjustable sliding rail enables it to slide back and forth freely to fix the light in the desired position. A great choice for home defense, hunting, and law enforcement.

Specifications

v Emitter:High-powered LED

v Battery Option: Built-in lithium-ion polymer battery

v Working Voltage: 3V-4.2V

v Maximum Charging Current: 1A

v USB Type-C charging

v Tail Dual E-Switch

v Material: AL6061-T6 aluminium alloy

v Water Resistance: IP67waterproof

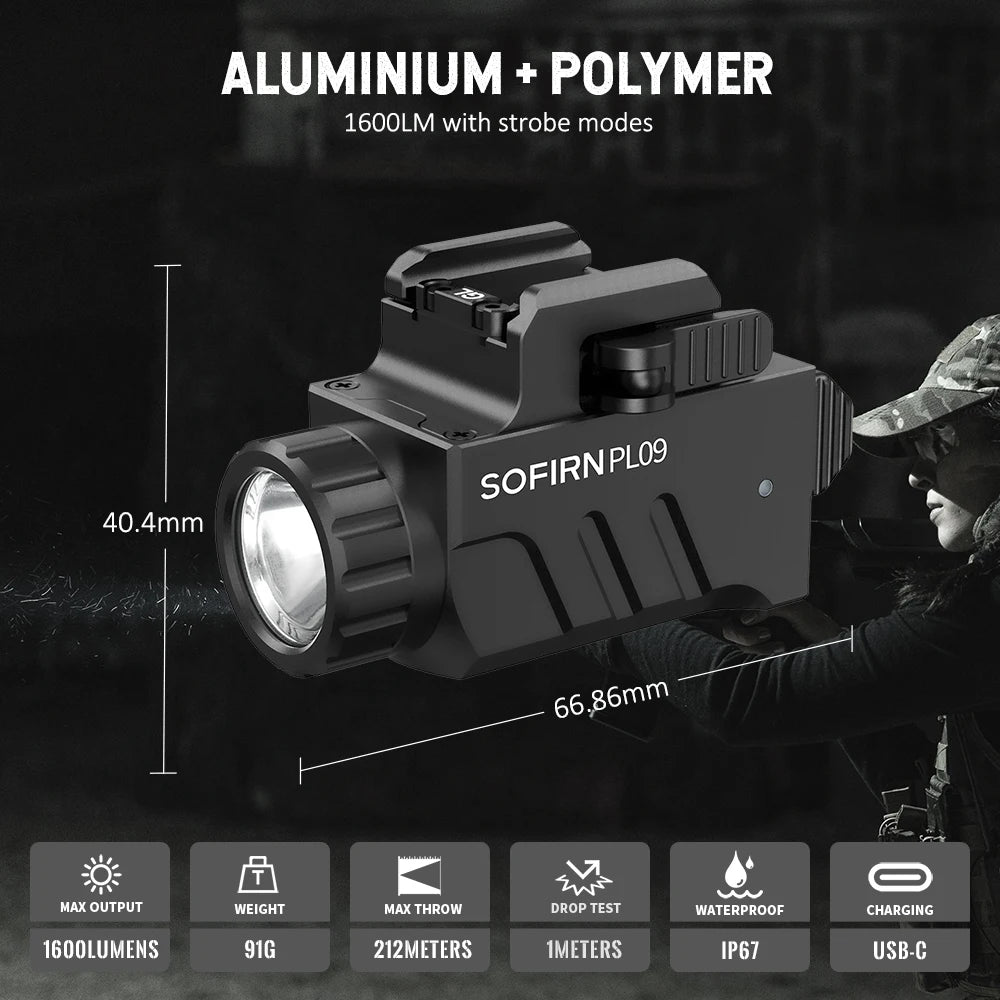

v Size: 66.9*33.5*40.4*mm

v Weight: 91g

Low Voltage Protection: Automatically detects battery level when turned on and red indicator flashes when the battery is poor. The flashlight automatically turns off when the battery voltage is critical.

Battery Level Indicator

After turning on the PL09, the red indicator flashes when the battery level is lower than 25%, which reminds you to get it recharged in time.

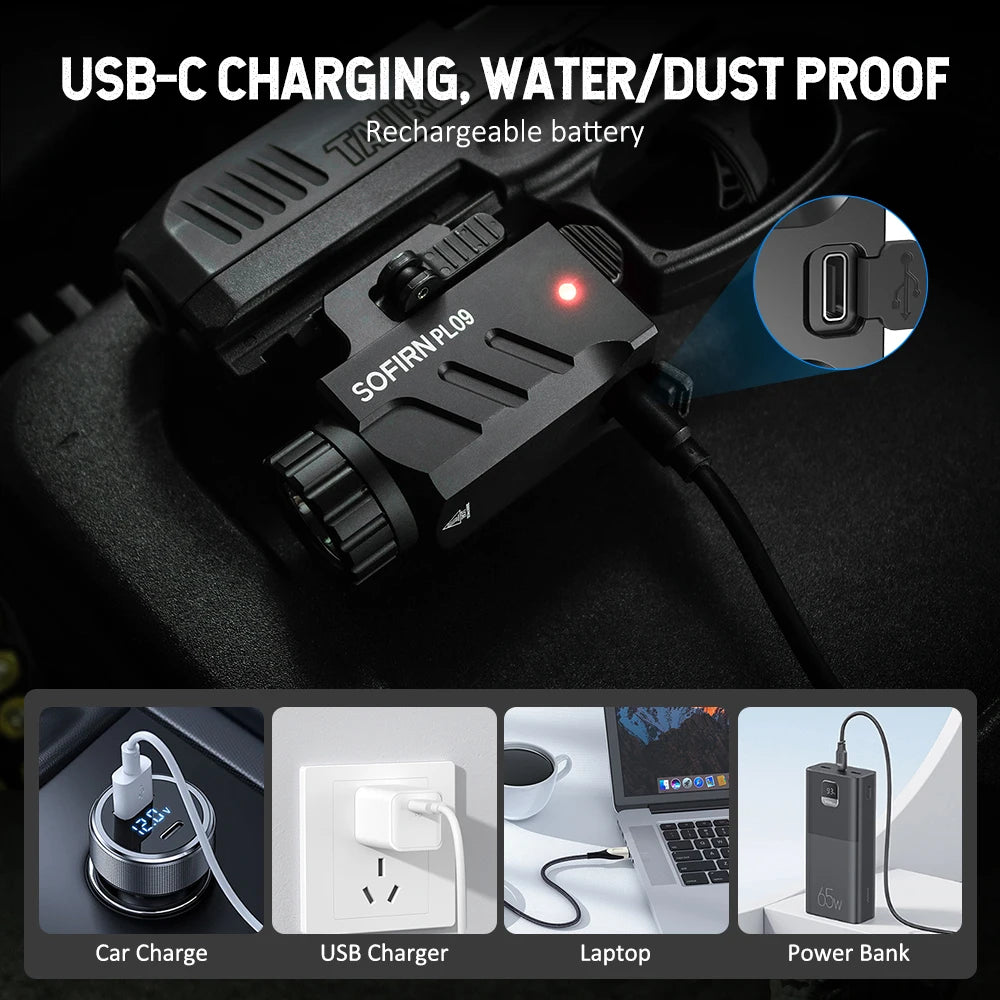

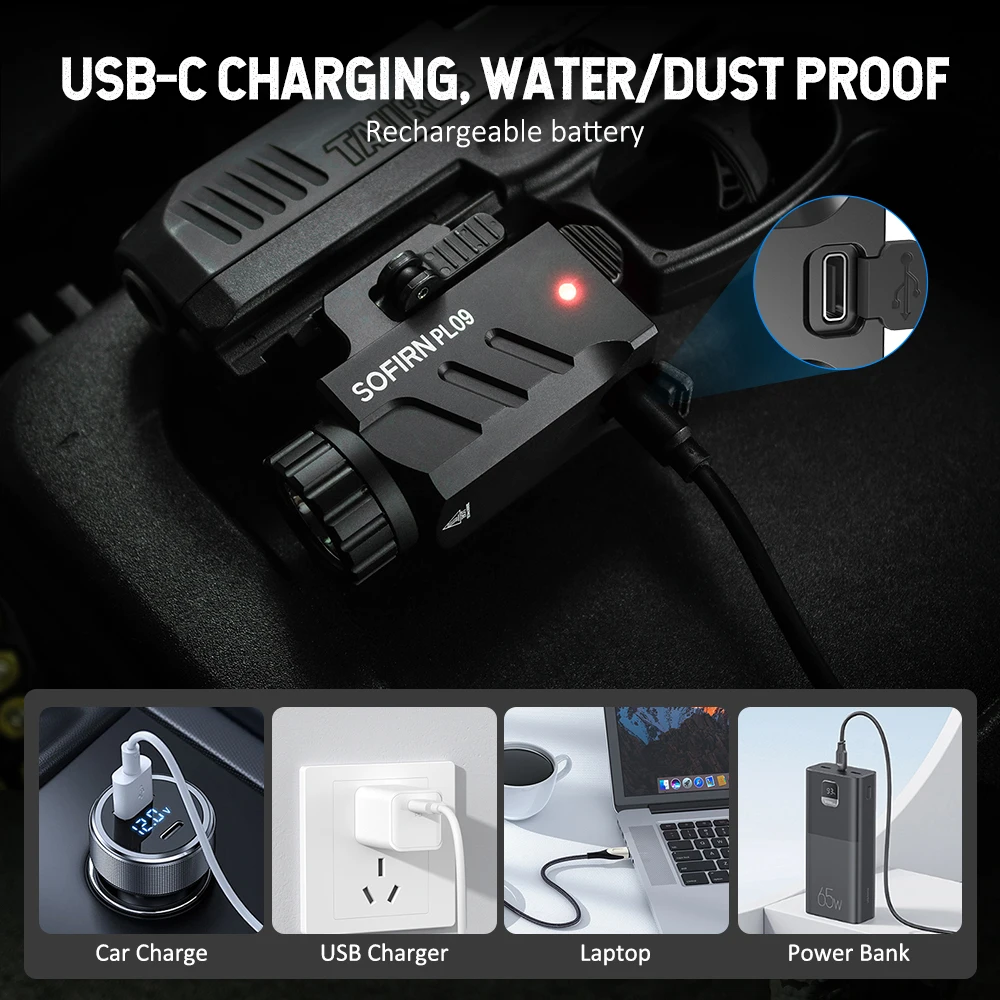

Equipped with a Type-C charging port, the charging current is up to 1A, and it takes about 1 hour to fully charge.

Light Indicator When Charging

Red =Charging

      Green = Fully Charged

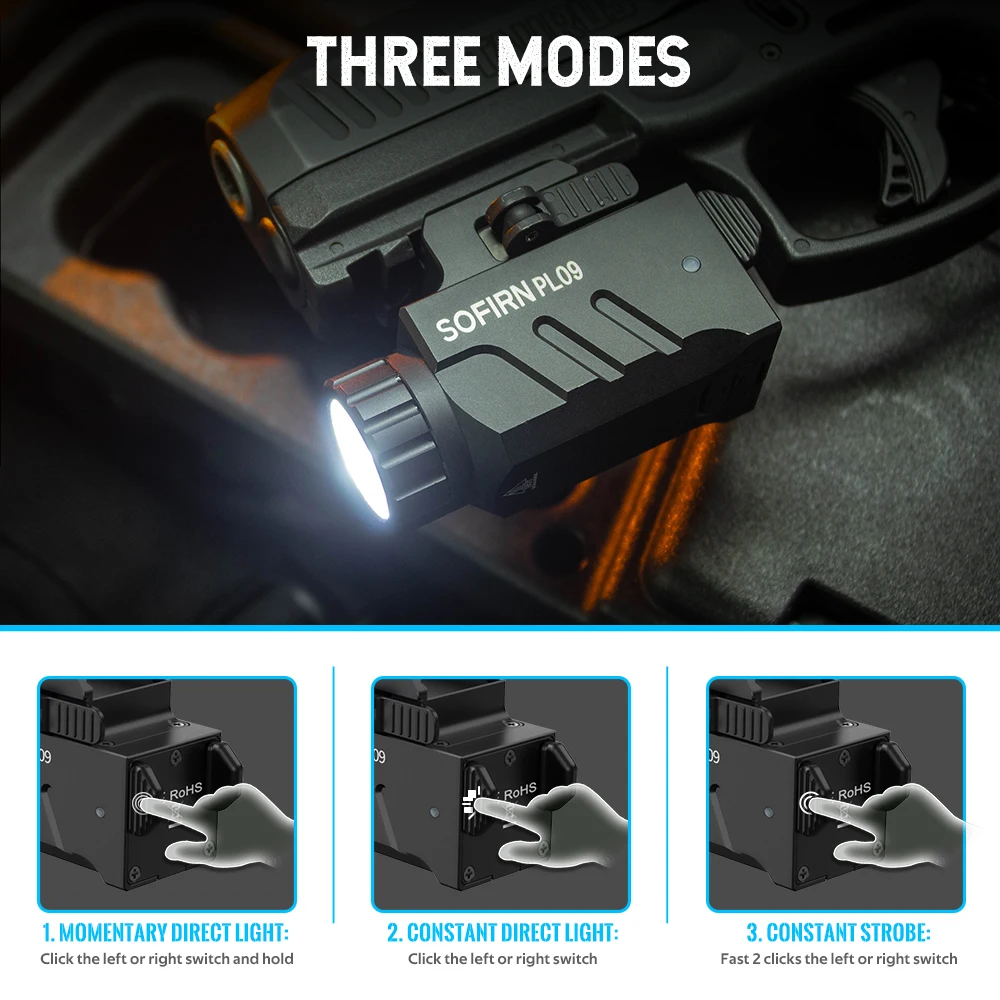

General Operation

ON/OFF: Press either button to turn the light on/off.

DIRECT ACCESS TO TURBO: When the light is off, press either button to Turbo. For momentary on, when the light is off, press and hold either button for more than 0.3 seconds. Let go of the button to turn it off.

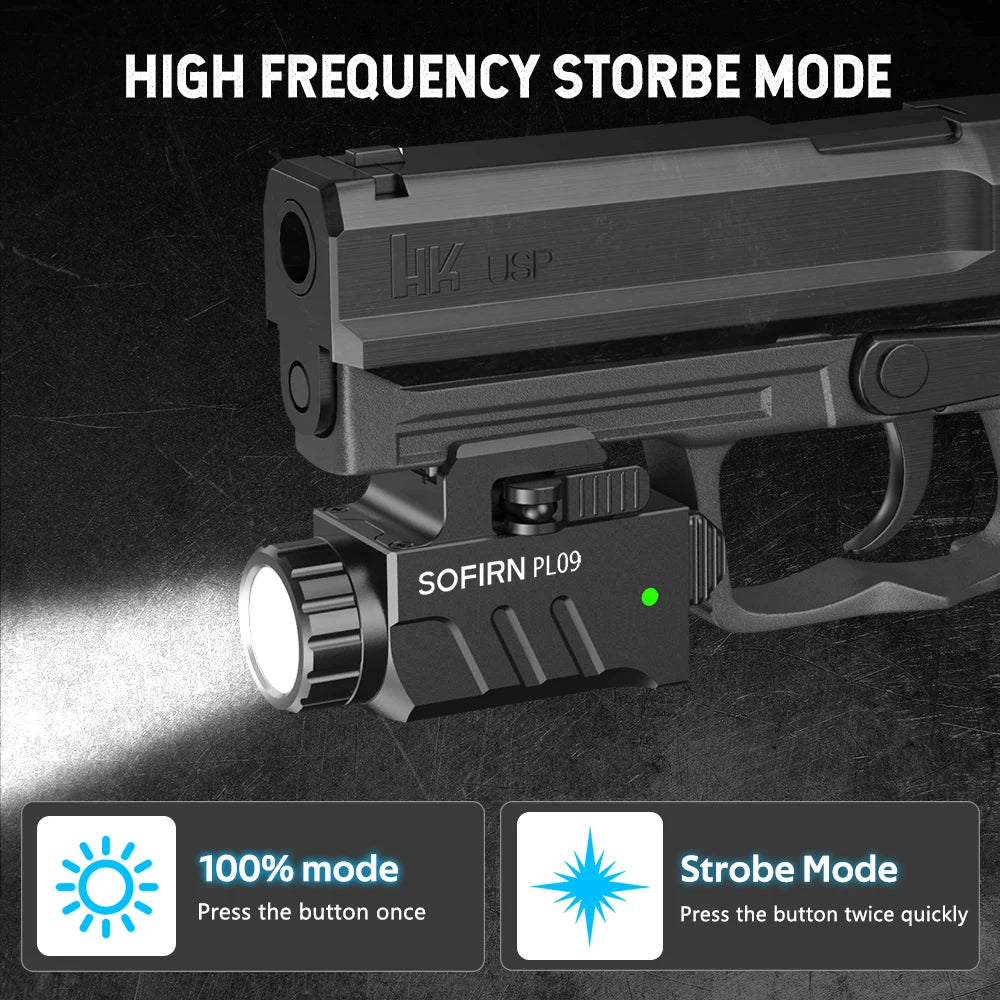

DIRECT ACCESS TO STROBE: In either mode (not in lockout mode), fast double press either button to activate Strobe. Single press either button to go back to the last used mode.

LOCKOUT: When the weaponlight is off, press and hold the two buttons at the same time for 3 seconds, the green indicator flashes twice to indicate that it is in lockout mode. This way, pressing any button will cause nothing to happen, but the green indicator flashes twice to remind you.

UNLOCK: When the flashlight is off, press and hold the two buttons at the same time for 3 seconds to disable the lockout mode and turn the light on.
